E-NR: 6309600

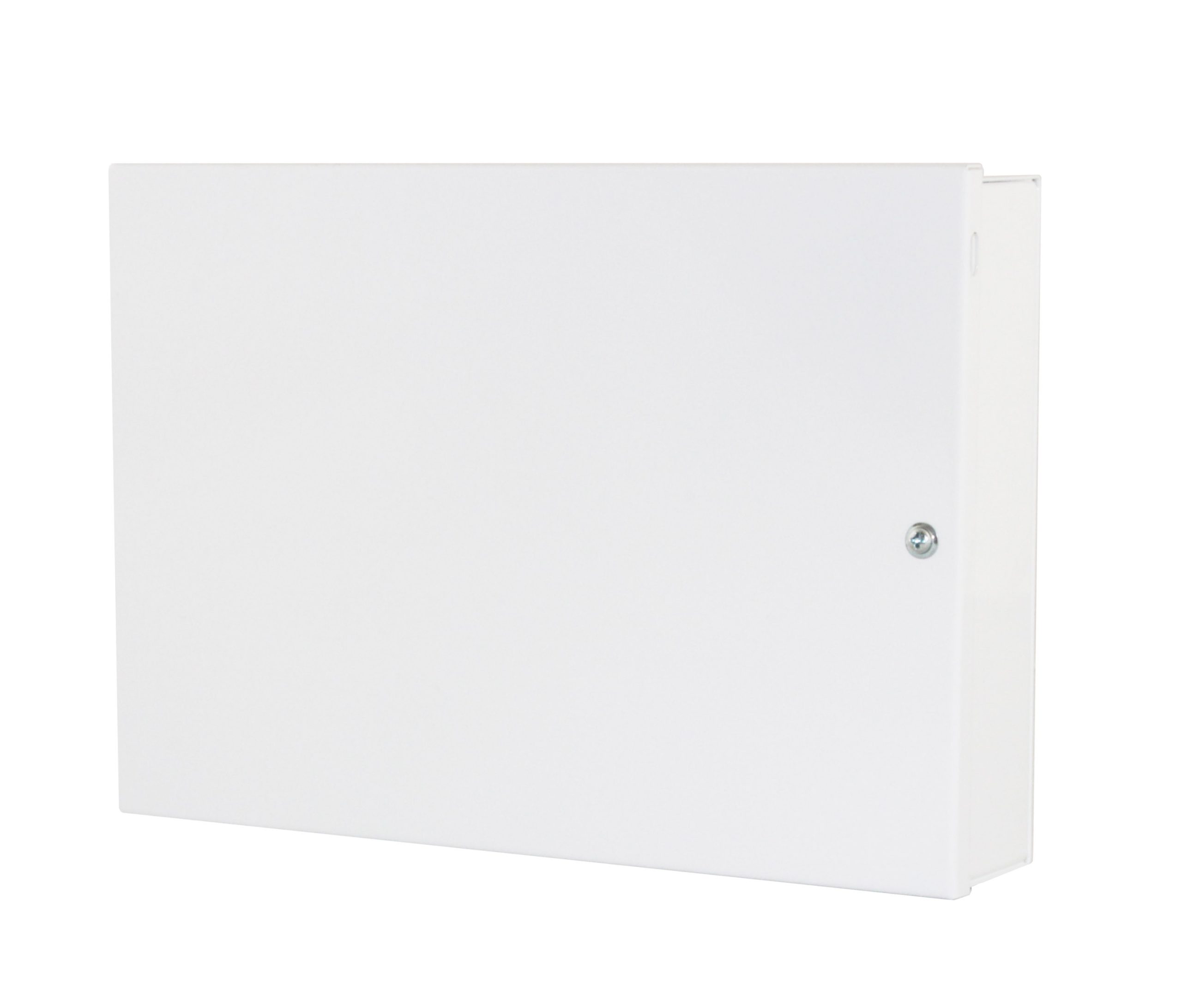

JB 370-5
Verteiler für GD 370

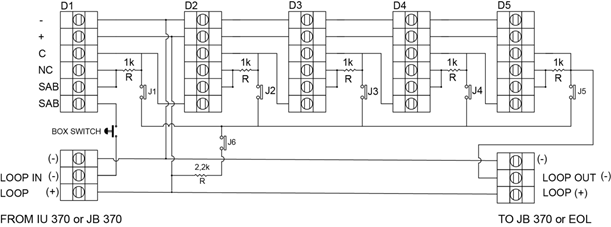

JB 370-5 is a junction box which simplifies the installation of the GD 370 glass break detector. The junction box connects max 5 GD 370 with IU 370 and/or multiple JB 370/JB 370-2/JB 370-5.
JB 370-5 is equipped with a built-in resistor for termination of glass break (optional with jumper) as well as a jumper which allows for use of GD 370 with relay towards IU 370. It also has tamper protection.
When installing multiple GD 370 in a location which allows for a common junction point JB 370-5 is an excellent choice of junction box.
| Attribute | Wert |
|---|---|
| Kontaktbelastbarkei |
48 VDC / 100 mA |
| Abmessungen (L x W x H) mm |
217 x 52 x 150 |
| Produkttyp |
Anschlussmaterial |
| Umgebung |
Innenbereich |
| Montagetyp |
Aufputz |
| Anschlussklemme |
Kopplung, Sabotageschutz |
| Klemmentyp |
Schraube |
| Serie |
JB-Serie |
| Gehäuse |
Metall |
| Produktreihe |
Alarmtech |
| Produkteigenschaft |
Aufputz |
| Product name | E-nr | Description |
|---|---|---|
| JB 370-5 | 6309600 |
