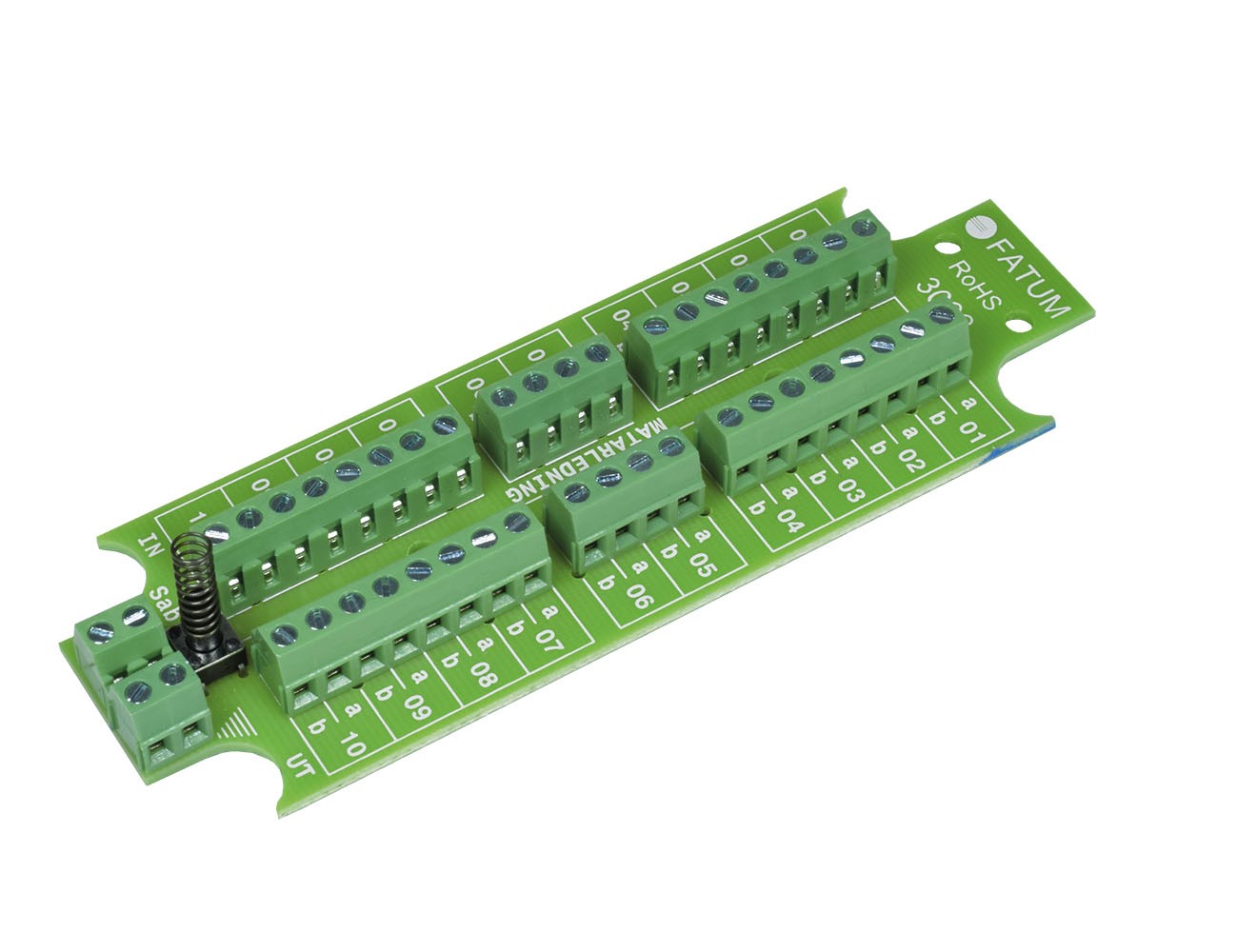

3022
ALARM MODULE 10 PAIRS
Terminal block for installation of alarm and access systems.
Anti-tampering protected terminal module with 10 pairs.
The terminal block has 10 parallel connected terminals, as well as 4 separate connections, of which 2 connections are intended for anti-tamper switch connection and 2 for cable shield.
Available in different options, slot (LSA) or screw connection with lift function.
| Attributes | Value |
|---|---|
| Terminals type |
LSA, LSA / screw, Screw |
| Cable dimension – LSA slots (mm) |
4 – 0, 7, Ø 0 |
| Cable dimension – screw terminals |
0, 14 – 1 mm2 |
| Input max. load |
60 V / 2 A |
| Tamper switch max. load |
50 mA |
| Product type |
Connection accessories |
| Environment |
Indoor |
| Mounting type |
Surface-mounted |
| Connection terminal |
Contact configuration, Tamper protection |
| Terminal type |
Screw/screw, Slot/slot |
| Product line |
Fatum |
| Product feature |
Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| 3022.01 | 5015286 | Alarm module, 10 Pairs, Tamper protected, LSA / LSA |
| 3022.02 | 5015288 | Alarm module, 10 Pairs, Tamper protected, LSA / Screw |
| 3022.03 | 5015290 | Alarm module, 10 Pairs, Tamper protected, Screw / Screw |
