2591.15
TERMINAL SPACERS FOR MOUNTING OF OUR TERMINAL BLOCKS
-
2591.18
TERMINAL SPACERS FOR MOUNTING OF OUR TERMINAL BLOCKS
-
2596.04
TERMINAL SPACERS AS A COMPLEMENT TO ESMI- AND ERICSSON-BAR
-
3201.02
MODULE BOX METAL WITH PLACE FOR 1 TERMINAL BLOCK
-
3201.02R
REDLINE MODULE BOX METAL IN RED WITH PLACE FOR 1 TERMINAL BLOCK
-
4101
MODULE BOX PLASTIC WITH PLACE FOR 1 TERMINAL BLOCK
-
4101R
REDLINE MODULE BOX, PLASTIC
-
4103
MODULE BOX PLASTIC WITH PLACE FOR UP TO 3 TERMINAL BLOCKS
E-NR: 5010431
3035

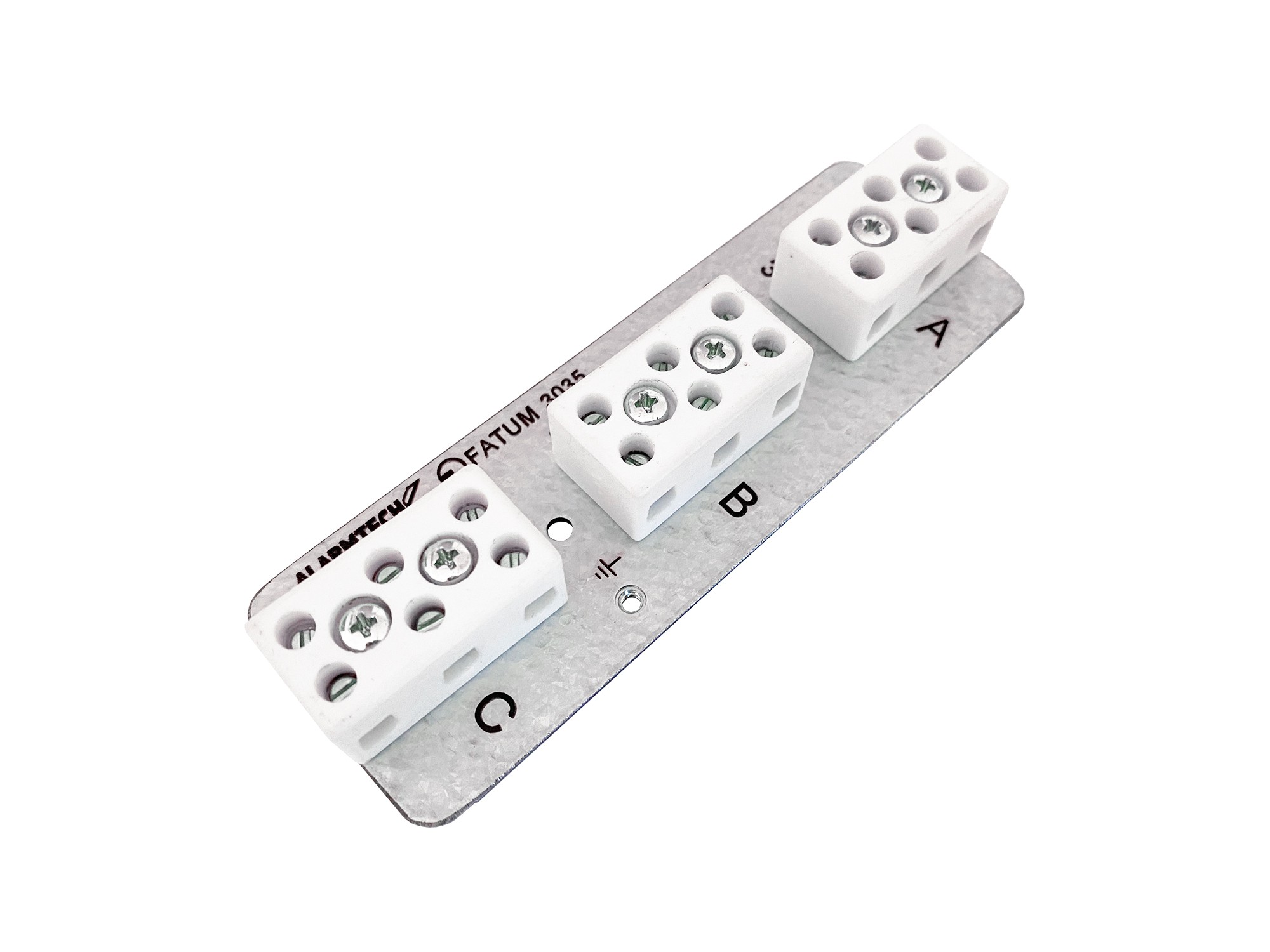

Connection module, ceramic 9-pole pair screw connection for voice / fire alarm installations.
Connection and fire module in metal with 3 ceramic terminals with 3 pairs of screw connection (2,5mm2) in each terminal.
A total of 9 inputs / outputs and laser markings on the metal plate for sustainable identification. Size 120x40x18mm. The terminal block fits the Fatum module program for plastic-, metal boxes or connection bars, which are available in white or red as standard. See also 4101.3503R for finished product
| Attributes | Value |
|---|---|
| Cable dimension – screw terminals |
0,2 – 2,5 mm2 |
| Input max. load |
60 V / 2 A |
| Dimensions (L x W) |
120 x 40 |
| Product type |
Connection accessories |
| Environment |
Indoor |
| Mounting type |
Surface-mounted |
| Connection terminal |
Contact configuration, Fire |
| Terminal type |
Screw/screw |
| Product line |
Fatum |
| Product feature |
Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| 3035 | 5010431 |
