3067

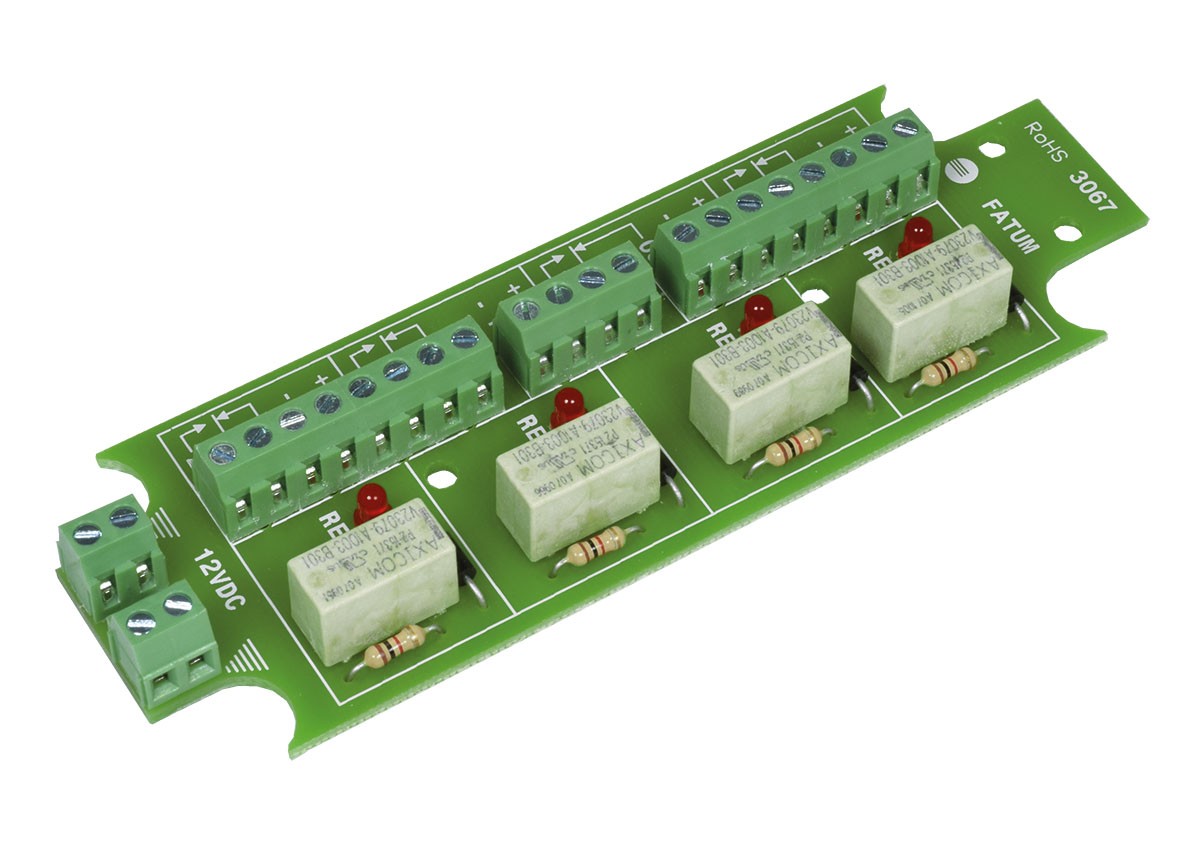

RELAY MODULE WITH 4 RELAYS, 12 VDC
Terminal block for installation of tele and access systems.
Relay module with 4 relays, 12 VDC.
LED connected in parallel with relay coil. Protection Diode.
4 separate relays with 1 pole SPDT contacts.
4 separate connections intended for cable shield.
Available in different options, slot (LSA) or screw connection with lift function.
| Attributes | Value |
|---|---|
| Terminals type |
LSA, Screw |
| Current consumption |
22 mA @12 VDC |
| Cable dimension – LSA slots (mm) |
4 – 0, 7, Ø 0 |
| Cable dimension – screw terminals |
0,14 – 1 mm2 |
| Input max. load |
60 V / 2 A |
| Min. relay voltage |
9 V |
| Dimensions (L x W) |
116 x 40 |
| Product type |
Connection accessories |
| Environment |
Indoor |
| Mounting type |
Surface-mounted |
| Accessory type |
Relay board |
| Connection terminal |
Contact configuration |
| Terminal type |
Screw/screw, Slot/slot |
| Product line |
Fatum |
| Product feature |
Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| 3067.01 | 5015516 | Relay module 12 VDC, 4 Relays, LSA |
| 3067.03 | 5015518 | Relay module 12 VDC, 4 Relays, Screw |
