E-NR: 5015501
6139
This product has been discontinued and replaced with: 28319.03

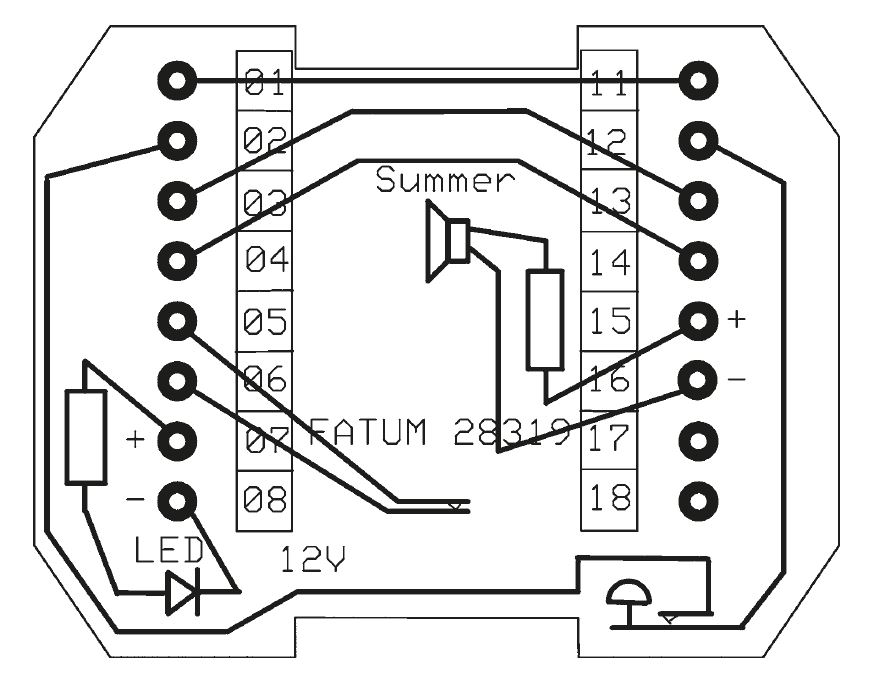

Complete reset set for installation of alarm and access systems.
Anti-tampering protected reset set, with LED display, buzzer and switch which breaks its output at pressed position, is used, for example, with advantage for resetting relay glass break detectors.
Suitable for 70 mm wall box with 60 mm hole spacing.
The box is flame-retardant according to UL 94 V-0.
Cover (86×86 mm) included.
The terminal has screw connection with lift function.
| Attributes | Value |
|---|---|
| Dimensions (L x W x H) mm |
86 x 86 x 42 |
| Cable dimension – screw terminals |
0,14 – 1 mm2 |
| Input max. load |
60 V / 2 A |
| Tamper switch max. load |
50 mA |
| Product name | E-nr | Description |
|---|---|---|
| 6139.03 | 5015501 | Anti-tampering protected reset set; 70 mm; Screw terminals |
