E-NR: 5015205
6220
ALARM SET RECESSED, 20 POLES, FOR WALLBOX
Complete alarm set for installation of alarm, access and fire systems.
Anti-tampering protected alarm set with 20 single pole terminals.
The terminal block is adapted to easily connect peripherals such as Alarmtech’s magnetic contacts and glass break detectors.

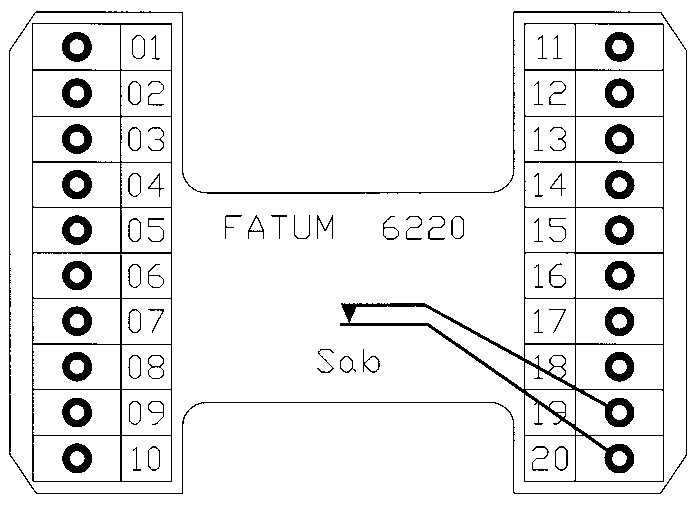

The terminal block has 20 connections, 2 of which are intended for anti-tamper switch connection. Suitable for 75 mm wall box with 67 mm hole spacing. The box is flame-retardant according to UL 94 V-0.
Cover (92×92 mm) included.
The terminal has screw connection with lift function.
| Attributes | Value |
|---|---|
| Dimensions (L x W x H) mm |
92 x 92 x 42 |
| Cable dimension – screw terminals |
0,14 – 1 mm2 |
| Input max. load |
60 V / 2 A |
| Tamper switch max. load |
50 mA |
| Product type |
Connection accessories |
| Environment |
Indoor |
| Mounting type |
Flush-mounted |
| Connection terminal |
Contact configuration, Tamper protection |
| Terminal type |
Screw/screw |
| Product line |
Fatum |
| Product feature |
Flush-mounted |
| Product name | E-nr | Description |
|---|---|---|
| 6220.03 | 5015205 | Alarm set 20 poles, Wall box, 75 mm, Tamper Protected, Screw |
