E-NR: 6310406
GD 475-SJ

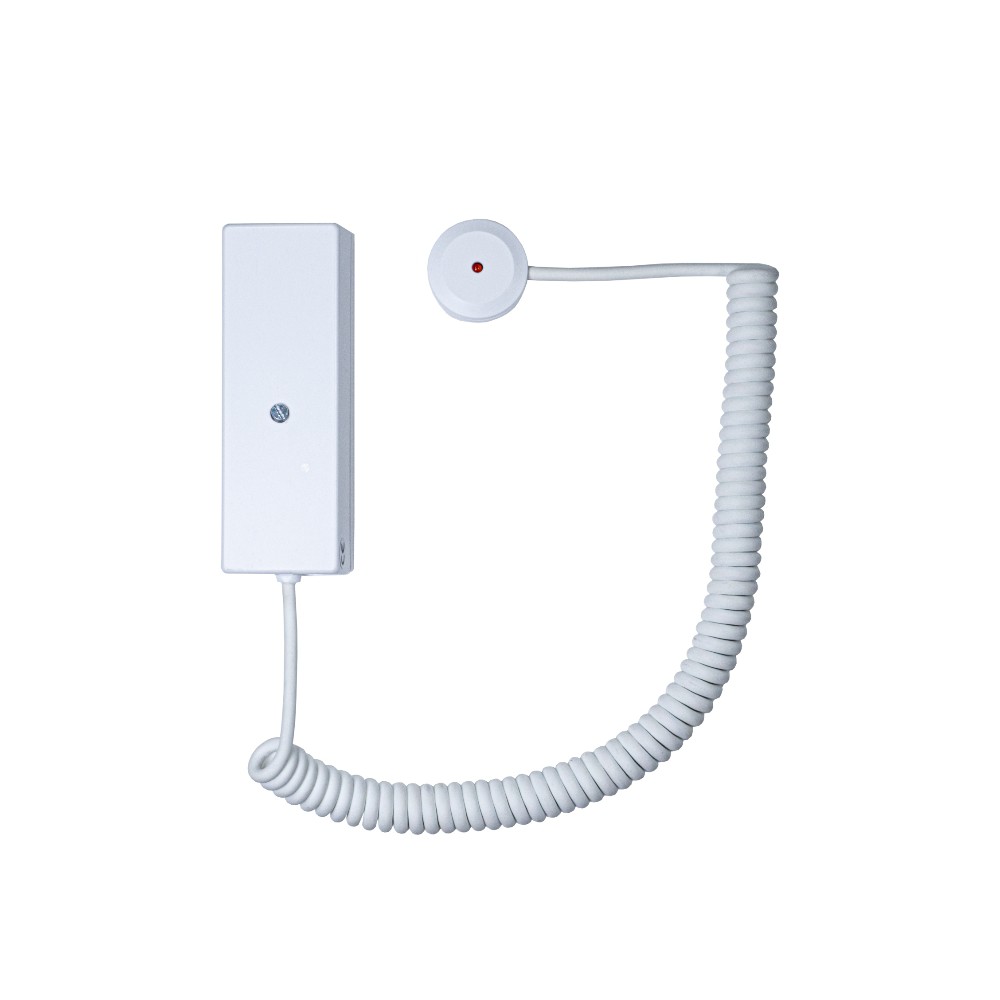

Universal glass break detector with junction box for most glass types, Glued

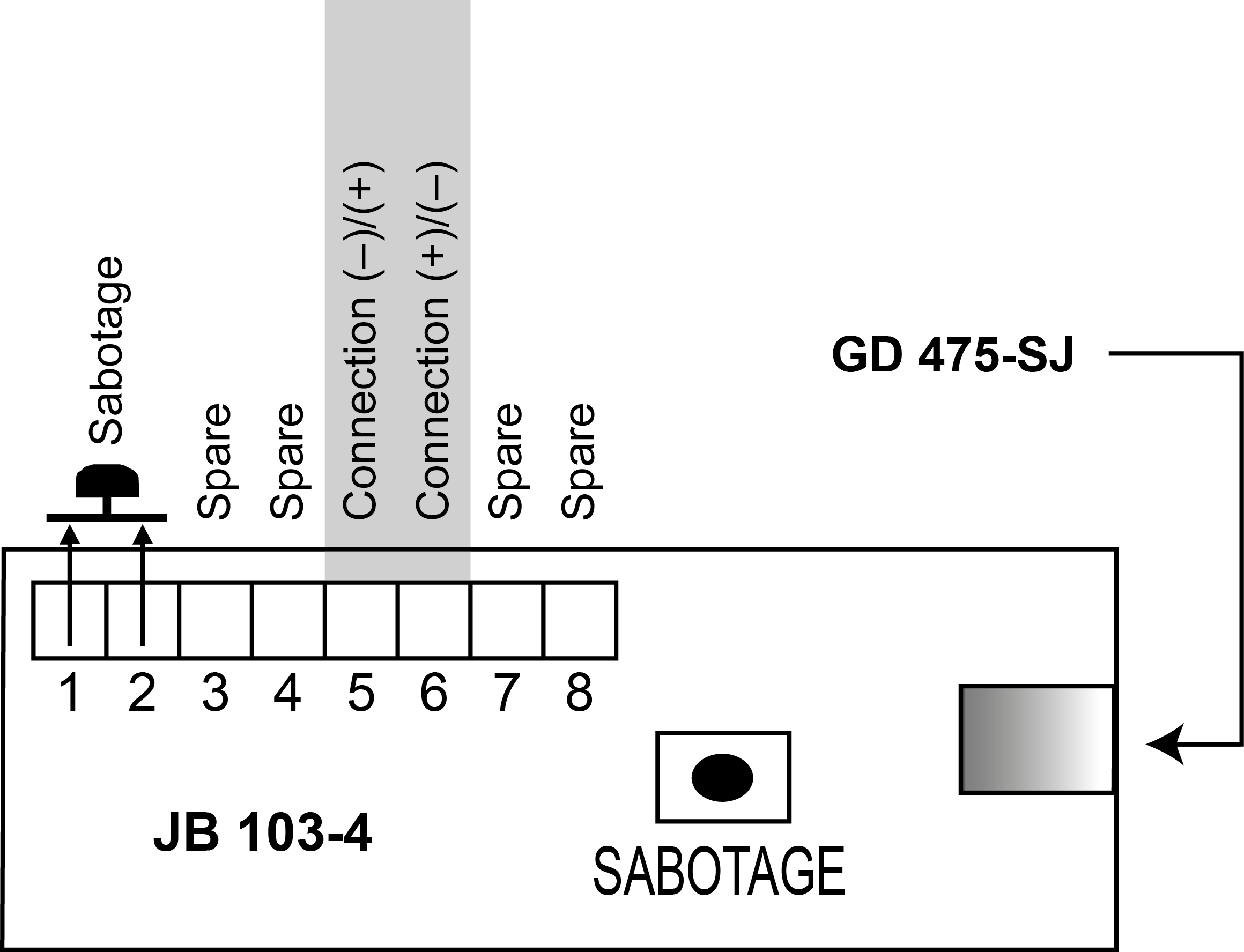

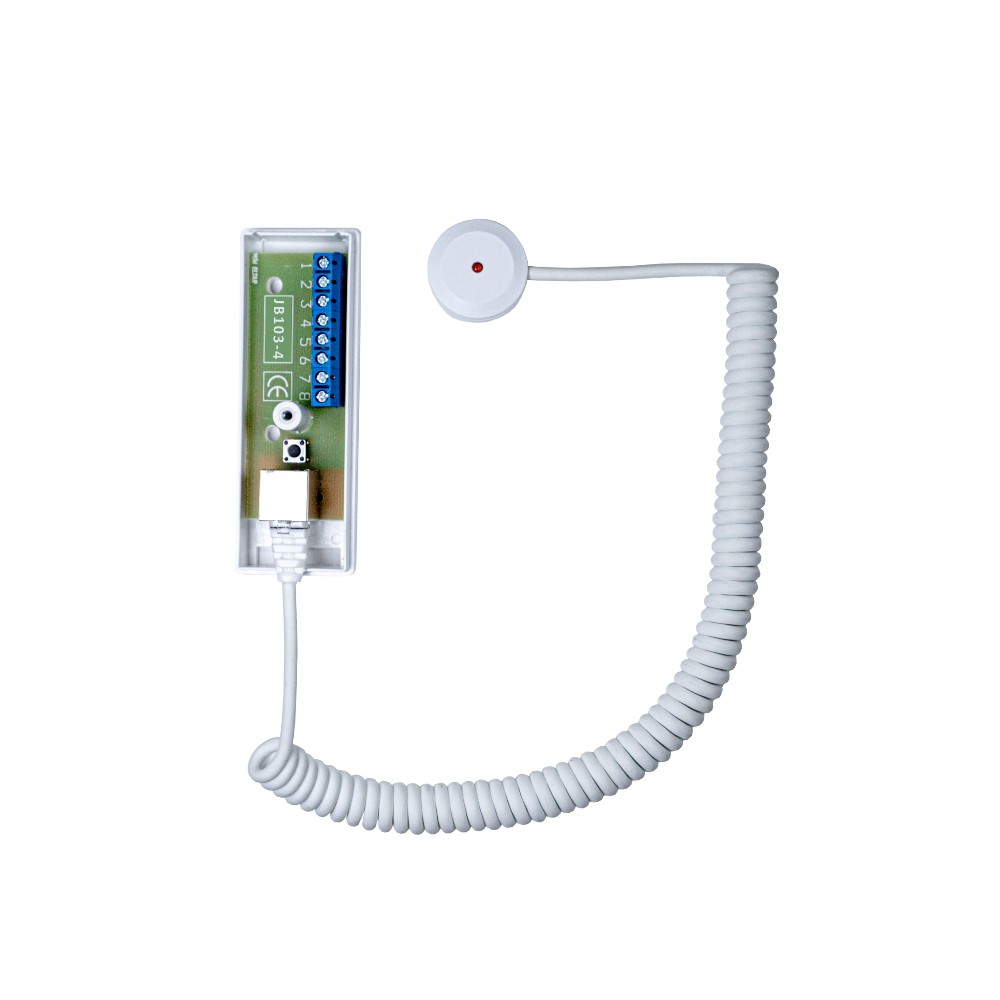

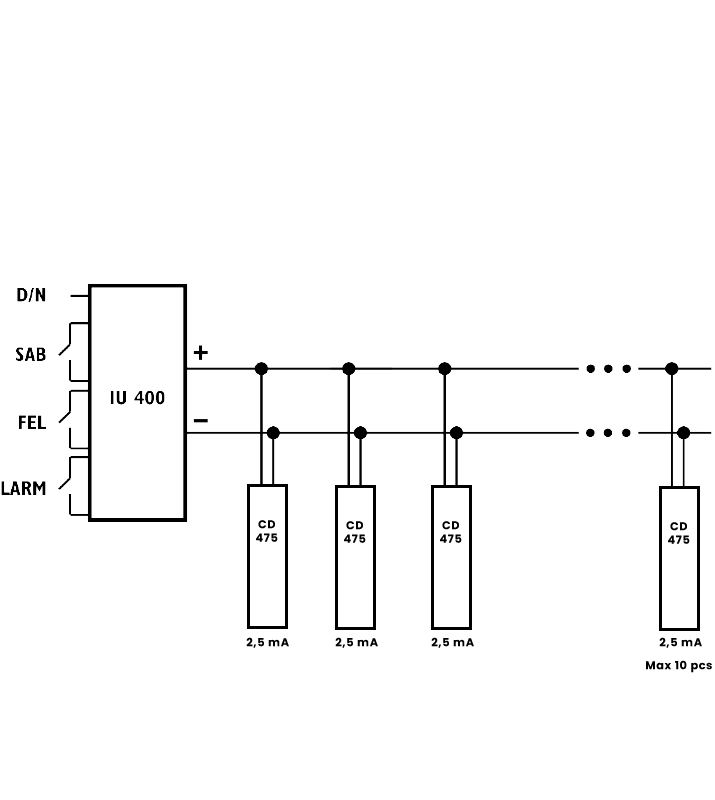

The GD 475-S has the same functions as the GD 475 with transistor output and must be connected to the control panel via an IU 400 interface/analyser unit. The detector has a coiled cable with a modular contact which is connected to the junction box JB 103-4, which allows it to be quickly and easy disconnected from the detector loop when, for example, cleaning windows. The signals from the detector comes on pin 5 & 6 in JB 103-4. Which is connected polarity independent to IU 400 pin 3 & 4.
| Attributes | Value |
|---|---|
| Approvals |
F&P, FG, VdS G 121503 Class B |
| Supply voltage |
5-15 VDC |
| Alarm indication |
LED |
| Operating temperature |
-40 – +55°C |
| Product type |
Detectors |
| Housing protection class |
IP 67 |
| Environment |
Indoor, Outdoor |
| Dimensions (H x Ø) mm |
11 x 26 |
| Mounting type |
Surface-mounted |
| Grade |
3 |
| Product group |
Glass break |
| Product feature |
Adhesive-mounted |
| Security certification and approval schemes |
EN, F&P, FG, SBSC, VdS |
| Security class |
3, B |
| Environmental class |
IIIA |
| Product name | E-nr | Description |
|---|---|---|
| GD 475-SJ | 6310406 | Glass break detector with transistor output, coiled cable with modular contact and junction box JB 103-4 |
