E-NR: 6332707
MC 240-S56
Magnetic Contact Set in Al Housing

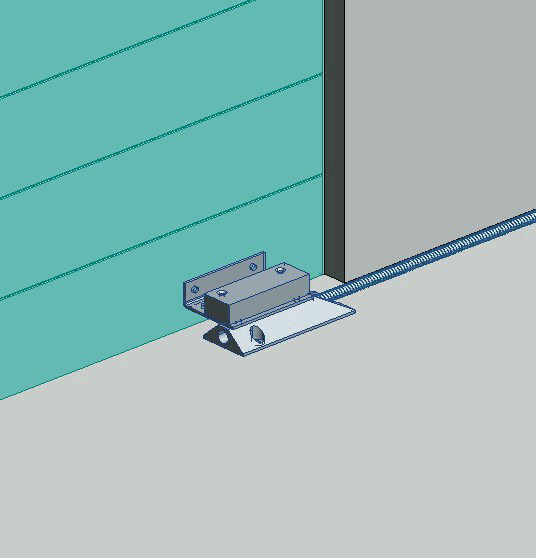

The MC 240-S56 set is intended for exposed environments where a more durable magnetic contact is needed, such as garage doors, industrial gates of folding or overhead type, etc. The set consists of MC 240-C contact with NC contact function installed in MC 200-6 Al housing and an extra strong magnet in MC 200-5 Al housing,which allows for a wide opening gap. The part to be installed to the floor can bear the weight of a vehicle and the enclosed L-bracket (MC L) enables easy installation and a possibility to adjust the magnet part on the door. MC 240-S56 set has a 1 m long stainless steel Flexi-tube protection (MC T4).
| Attributes | Value |
|---|---|
| Approvals |
Class IIIA, EN 50131-2-6 Grade 2, INCERT B-582-0013, SBSC 9-196, VdS G 193513 Class B |
| Contact rating |
48 VDC / 500 mA / 10 VA |
| Operating temperature |
-40°C – +70°C |
| Housing protection class |
IP 67 |
| Magnet type |
Alnico 5 |
| Make distance (wood) mm |
45 |
| Make distance (steel) mm |
34 |
| Housing material |
Aluminium |
| Contact dimensions (L x W x H) mm |
104 x 40 x 15 |
| Magnet dimensions (L x W x H) mm |
74 x 25 x 15 |
| Grade |
2 |
| Product type |
Detectors |
| Environment |
Indoor |
| Mounting type |
Surface-mounted |
| Product group |
Magnetic contact |
| Product feature |
Surface-mounted |
| Security certification and approval schemes |
EN, F&P, FG, INCERT, NBU, NF&A2P, SBSC, VdS |
| Security class |
2, B |
| Environmental class |
IIIA |
| Product name | E-nr | Description |
|---|---|---|
| MC 240-S56 | 6332707 | Magnetic contact set, 6 m cable |
