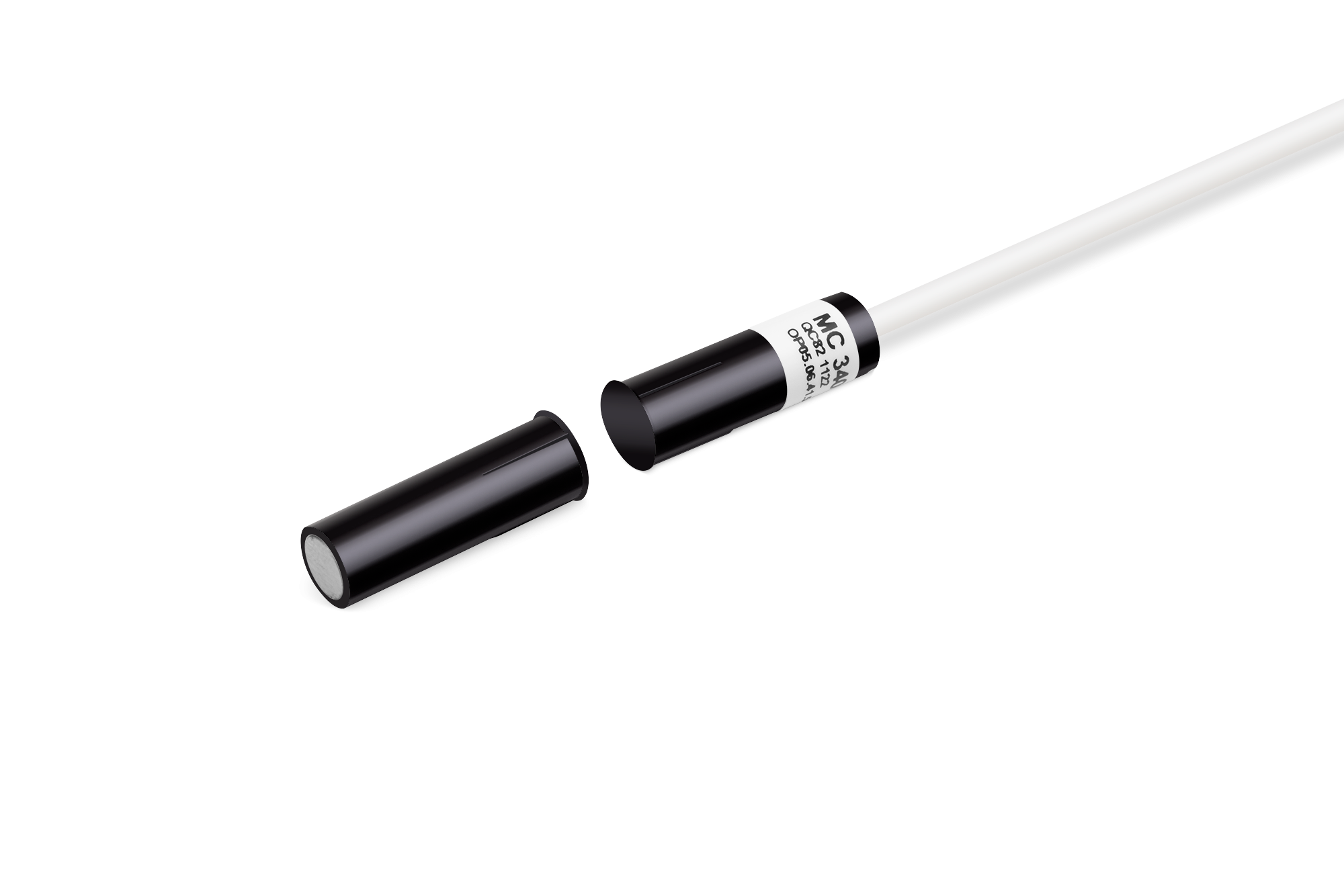

MC 340
Magnetic Contact, Recessed mounting, NC
MC 340 is a universal magnetic contact with NC function that can be used in both alarm and access control systems for monitoring e.g. doors and windows against unauthorized opening. Both the contact and the magnet part are encased in a water proof (IP67) plastic housing, which enables easy installation into wood without additional accessories. With our extensive range of installation accessories it is easy to install the contact either recessed or as a surface mount on metal and other materials.
| Attributes | Value |
|---|---|
| Cable length |
2m, 5m, 10m |
| Approvals |
Class 1/2,FG, Class IIIA, CNPP 2124030002A0, EN 50131-2-6 Grade 2, GRADE 2 + RTC, INCERT B-582-1003, NBÚ CZ Typ 2,NBÚ SK Typ 2,NF&A2P, SBSC 9-200, VdS G 196670 Class B |
| Contact rating |
48 VDC / 500 mA / 10 VA |
| Operating temperature |
-40°C – +70°C |
| Housing protection class |
IP 67 |
| Drill diameter mm |
8 |
| Make distance (wood) mm |
21 |
| Make distance (steel) mm |
X |
| Contact dimensions (L x Ø) mm |
26 x 9 |
| Magnet dimensions (L x Ø) mm |
26 x 9 |
| Grade |
2 |
| Product type |
Detectors |
| Environment |
Indoor |
| Mounting type |
Flush-mounted |
| Product group |
Magnetic contact |
| Product feature |
Flush-mounted |
| Application area | |
| Security certification and approval schemes |
EN, F&P, FG, INCERT, NBU, NF&A2P, SBSC, VdS |
| Security class |
2, B |
| Environmental class |
IIIA |
| Product name | E-nr | Description |
|---|---|---|
| MC 340 | 6332760 | Recessed magnetic contact, NC, 2 m cable |
| MC 340-5 | 6332761 | Recessed magnetic contact, NC, 5 m cable |
| MC 340-10 | 6332762 | Recessed magnetic contact, NC, 10 m cable |
| MC 340-C | 6332763 | Recessed contact without magnet, NC, 5 m cable |
| MC 340-BL | Recessed magnetic contact, NC, 2 m cable, black | |
| MC 340-5BL | Recessed magnetic contact, NC, 5 m cable, black | |
| MC 340-10BL | Recessed magnetic contact, NC, 10 m cable, black | |
| MC 340-CBL | Recessed contact without magnet, NC, 5 m cable, black |
