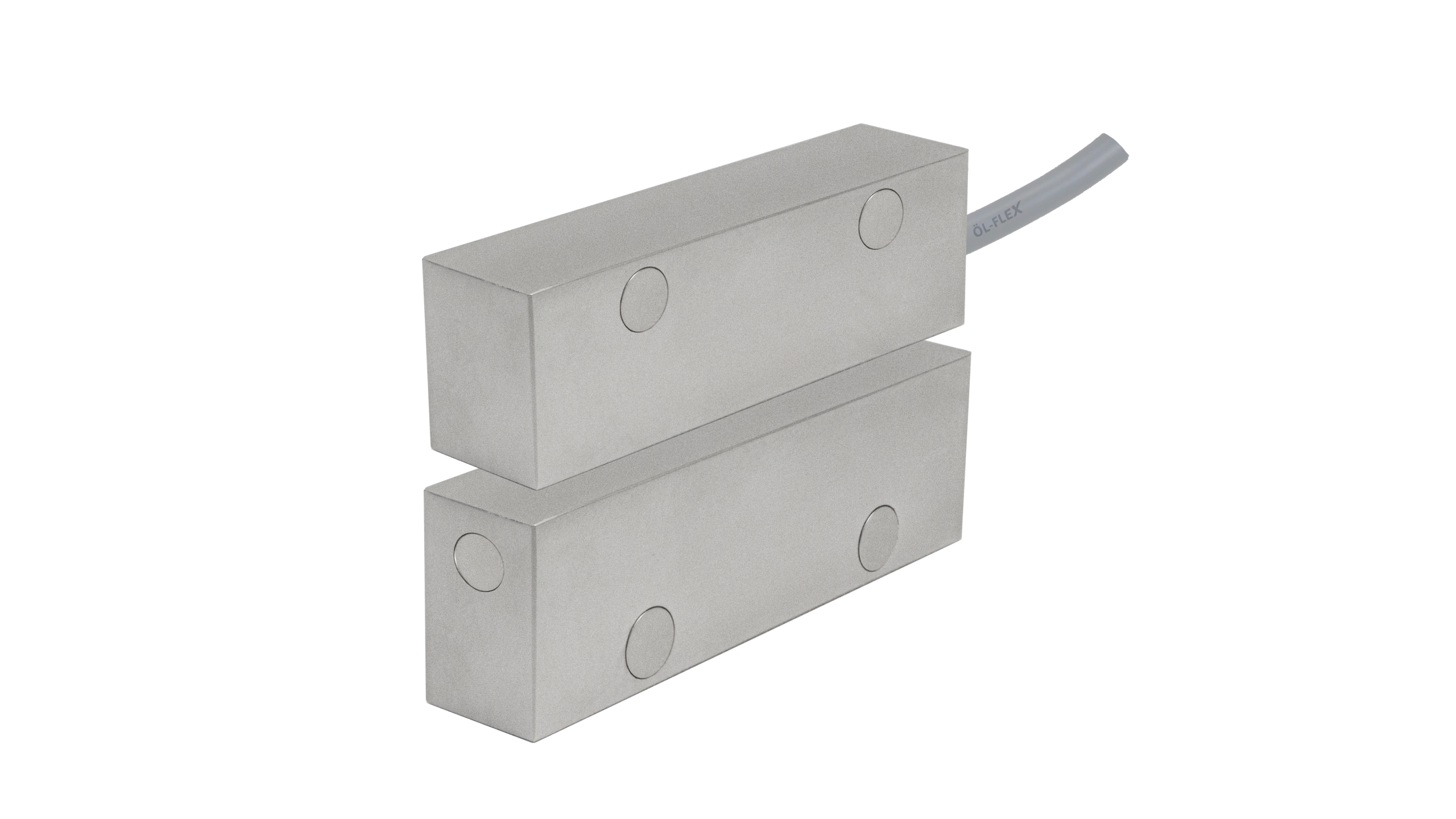

MCX 240
Heavy duty magnetic contact, surface mount, ATEX certified by TüV
MCX 240 is a heavy duty magnetic contact used in both alarm and security access control systems for protection of garage doors, industrial gates etc. against unauthorised opening. It is specially designed for use in explosive atmospheres and should in this type of installations be installed with the MCX FuseBox in series with contact, between contact and end equipment.
| Product name | E-nr | Description |
|---|---|---|
| MCX 240 | Heavy duty magnetic contact, surface mount, ATEX certified by TüV, Max.v supply (V) 48, In fuse max (Ma)294 | |
| MCX 240-1x1k | Heavy duty magnetic contact, surface mount, ATEX certified by TüV, 1000 Ohm, Max.v supply (V) 18.5, In fuse max (Ma) 18.5 | |
| MCX 240-1x2k2 | Heavy duty magnetic contact, surface mount, ATEX certified by TüV, 2200 Ohm, Max.v supply (V) 27.5, In fuse max (Ma) 12.5 | |
| MCX 240-1x4k7 | Heavy duty magnetic contact, surface mount, ATEX certified by TüV, 4700 Ohm, Max.v supply (V) 40.5, In fuse max (Ma) 8.5 | |
| MCX 240-1x5k6 | Heavy duty magnetic contact, surface mount, ATEX certified by TüV, 5600 Ohm, Max.v supply (V) 44, In fuse max (Ma) 8 | |
| MCX 240-1x6k8 | Heavy duty magnetic contact, surface mount,ATEX certified by TüV, 6800 Ohm, Max.v supply (V) 48, In fuse max (Ma) 7 | |
| MCX 240-1x10k | Heavy duty magnetic contact, surface mount, ATEX certified by TüV, 10000 Ohm, Max.v supply (V) 48, In fuse max (Ma) 6 | |
| MCX 240-1x16k2 | Heavy duty magnetic contact, surface mount, ATEX certified by TüV, 16200 Ohm, Max.v supply (V) 48, In fuse max (Ma) 4.5 | |
| MCX 240-2x1k | Heavy duty magnetic contact, surface mount, ATEX certified by TüV, 1000 Ohm, Max.v supply (V) 13, In fuse max (Ma) 13 | |
| MCX 240-2x2k2 | Heavy duty magnetic contact, surface mount,ATEX certified by TüV, 2200 Ohm, Max.v supply (V) 19.5, In fuse max (Ma) 9 | |
| MCX 240-2x4k7 | Heavy duty magnetic contact, surface mount, ATEX certified by TüV, 4700 Ohm, Max.v supply (V) 28.5, In fuse max (Ma) 6 | |
| MCX 240-2x5k6 | Heavy duty magnetic contact, surface mount, ATEX certified by TüV, 5600 Ohm, Max.v supply (V) 31, In fuse max (Ma) 5.5 | |
| MCX 240-2x6k8 | Heavy duty magnetic contact, surface mount, ATEX certified by TüV, 6800 Ohm, Max.v supply (V) 34.5, In fuse max (Ma) 5 | |
| MCX 240-2x10k | Heavy duty magnetic contact, surface mount, ATEX certified by TüV, 10000 Ohm, Max.v supply (V) 42.5, In fuse max (Ma) 4 | |
| MCX 240-2x16k2 | Heavy duty magnetic contact, surface mount, ATEX certified by TüV, 16200 Ohm, Max.v supply (V) 48, In fuse max (Ma) 3.3 |
