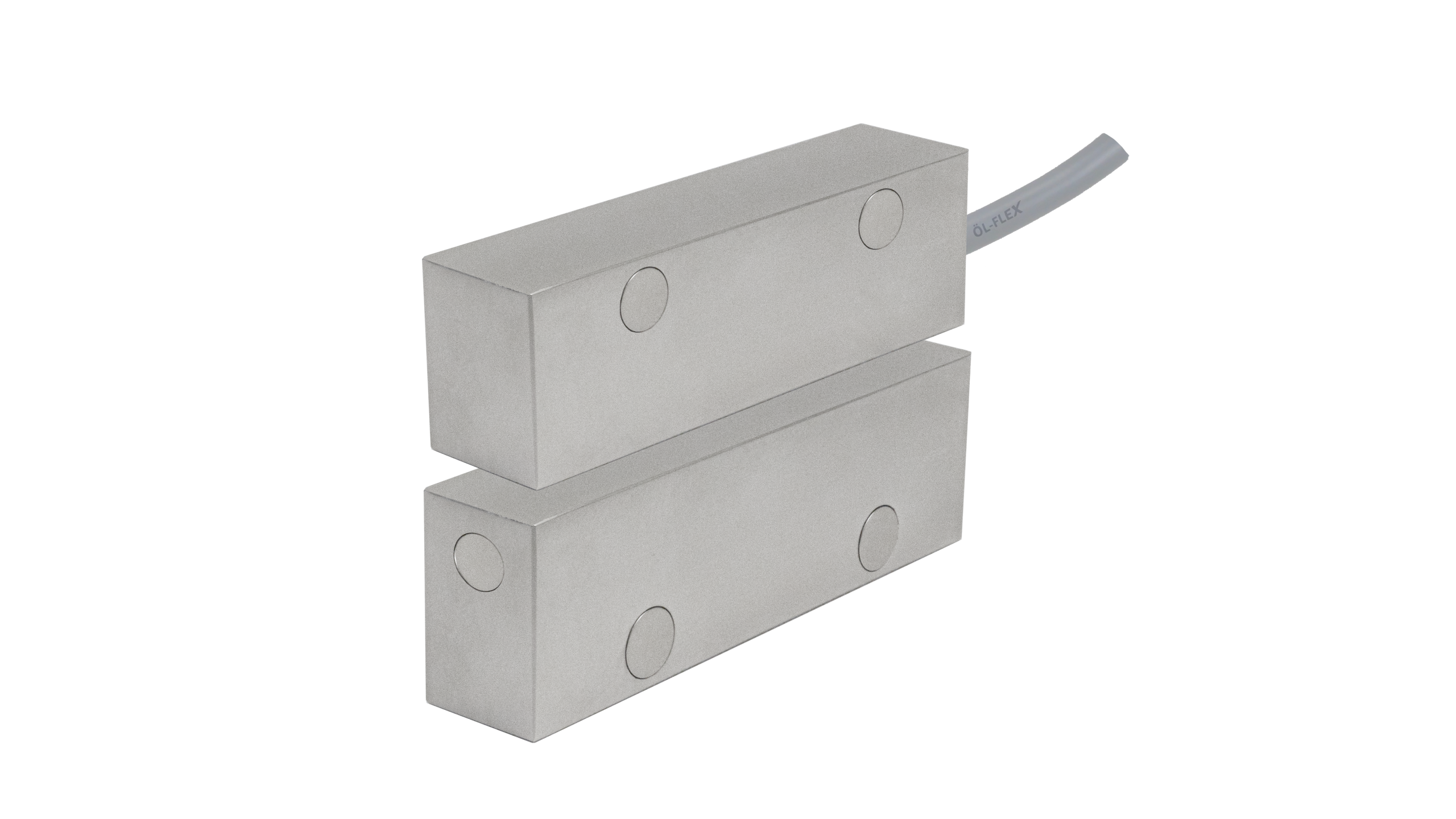

MCX 270
Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV
MCX 270 is a heavy duty high security magnetic contact used in both alarm and security access control systems for protection of garage doors, industrial gates etc. against unauthorized opening and external magnetic field. It is specially designed for use in explosive atmospheres and should in this type of installations be installed with the MCX FuseBox in series with contact, between contact and end equipment.
| Product name | E-nr | Description |
|---|---|---|
| MCX 270 | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, Max.v supply (V) 48, In fuse max (Ma)294 | |
| MCX 270-R1k | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, 1000 Ohm, Max.v supply (V) 18.5, In fuse max (Ma) 18.5 | |
| MCX 270-R2,2k | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, 2200 Ohm, Max.v supply (V) 27.5, In fuse max (Ma) 12.5 | |
| MCX 270-R4,7k | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, 4700 Ohm, Max.v supply (V) 40.5, In fuse max (Ma) 8.5 | |
| MCX 270-R5,6k | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, 5600 Ohm, Max.v supply (V) 44, In fuse max (Ma) 8 | |
| MCX 270-R6,8k | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, 6800 Ohm, Max.v supply (V) 48, In fuse max (Ma) 7 | |
| MCX 270-R10k | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, 10000 Ohm, Max.v supply (V) 48, In fuse max (Ma) 6 | |
| MCX 270-R16,2k | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, 16200 Ohm, Max.v supply (V) 48, In fuse max (Ma) 4.5 | |
| MCX 270-2x2R1k | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, 1000 Ohm, Max.v supply (V) 13, In fuse max (Ma) 13 | |
| MCX 270-2x2R,2k | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, 2200 Ohm, Max.v supply (V) 19.5, In fuse max (Ma) 9 | |
| MCX 270-2xR4,7k | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, 4700 Ohm, Max.v supply (V) 28.5, In fuse max (Ma) 6 | |
| MCX 270-2xR5,6k | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, 5600 Ohm, Max.v supply (V) 31, In fuse max (Ma) 5.5 | |
| MCX 270-2xR6,8k | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, 6800 Ohm, Max.v supply (V) 34.5, In fuse max (Ma) 5 | |
| MCX 270-2xR10k | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, 10000 Ohm, Max.v supply (V) 42.5, In fuse max (Ma) 4 | |
| MCX 270-2xR16,2k | Heavy duty, high security magnetic contact, surface mount, ATEX certified by TüV, 16200 Ohm, Max.v supply (V) 48, In fuse max (Ma) 3.3 |
