E-NR: 5255013
PSV 1225-18
Power supply unit, ViP, 12 V 2,5 A
Power supply unit with ViP (Voltage in Parallel) function, 12 VDC 2,5 A.

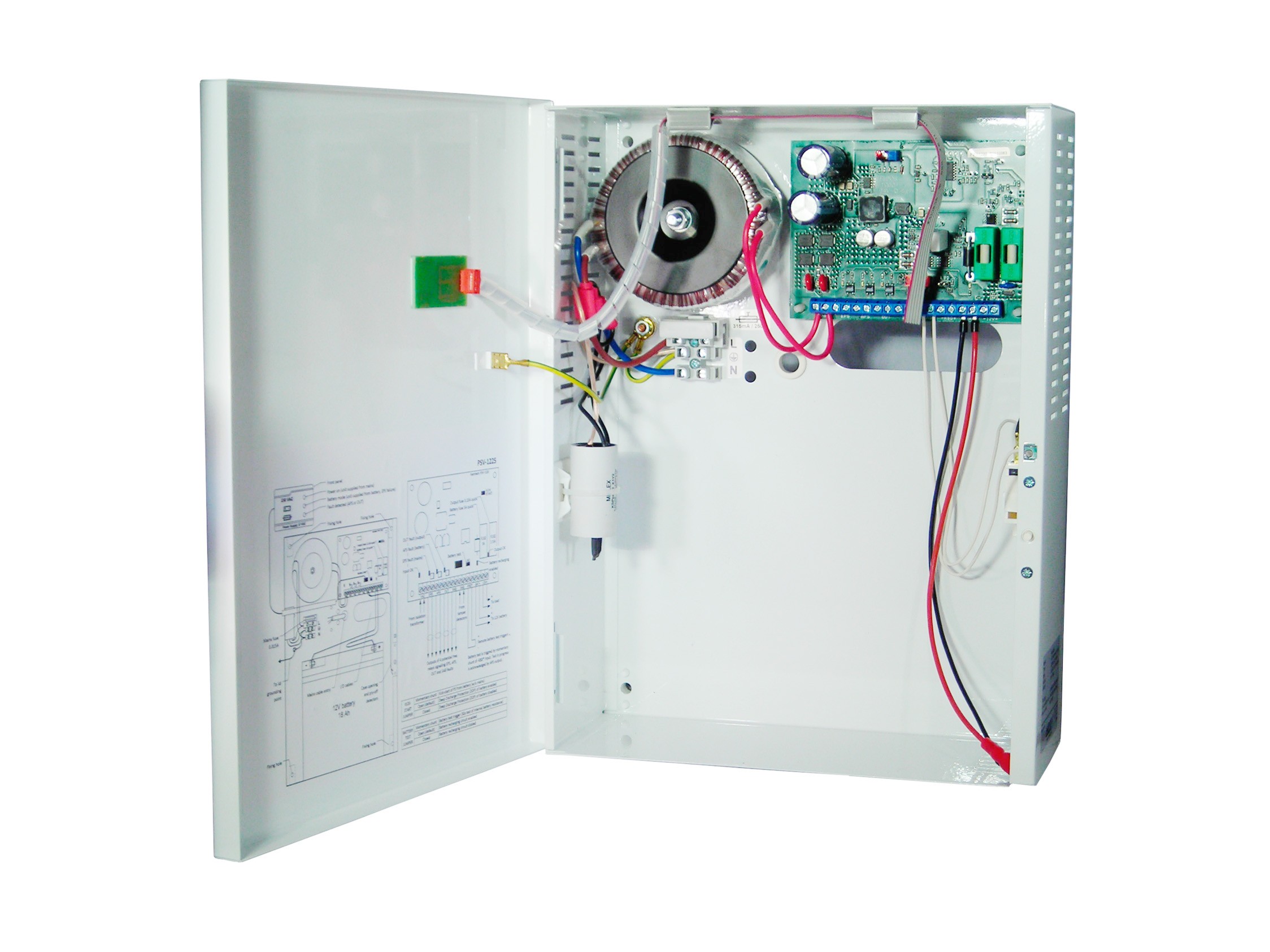

Power supply unit with ViP function can be connected in parallel to provide more power and redundancy and compensate for voltage drop in the cables. Space is provided for one 12 V/18 Ah accumulator in the metal box which also has opening and pry- off switches. The unit is protected against short-circuiting and overload. Mains failure, low output voltage, battery and fuse failure is indicated via LED and activates separate outputs with relays.
| Attributes | Value |
|---|---|
| Approvals |
CB TEST, EN 60950-1:2006 + A11 +A12+A2, EN 6100-6:2007 EN 61000-6-3:2007+A1 |
| Supply voltage |
230 VAC |
| Dimensions (L x W x H) mm |
300 x 230 x 100 |
| Output voltage |
13,8 VDC |
| Output current |
2,5 A |
| Space for accumulator (not included) |
12 V/18 Ah |
| Product type |
Power supply |
| Environment |
Indoor |
| Mounting type |
Surface-mounted |
| Module |
12V |
| Product feature |
Surface-mounted |
| Product name | E-nr | Description |
|---|---|---|
| PSV 1225-18 | 5255013 |
